Handling Robots
The Handling Robot is an advanced automated solution designed to streamline material handling tasks across various industries. Equipped with state-of-the-art sensors, precise actuators, and sophisticated software, this robot ensures efficient, accurate, and safe handling of materials, contributing to enhanced productivity and reduced labor costs.
Technical Parameters
| Basic Parameters | Degrees of Freedom | 4 |
|---|---|---|
| Specified Load | 20kg | |
| Humidity | 20%~80%RH(no condensation) | |
| Working Environment Temperature | 0~50℃ | |
| Repeatability | ±0.8mm | |
| Installation Method | ground | |
| Battery Capacity | 3.8 KW |

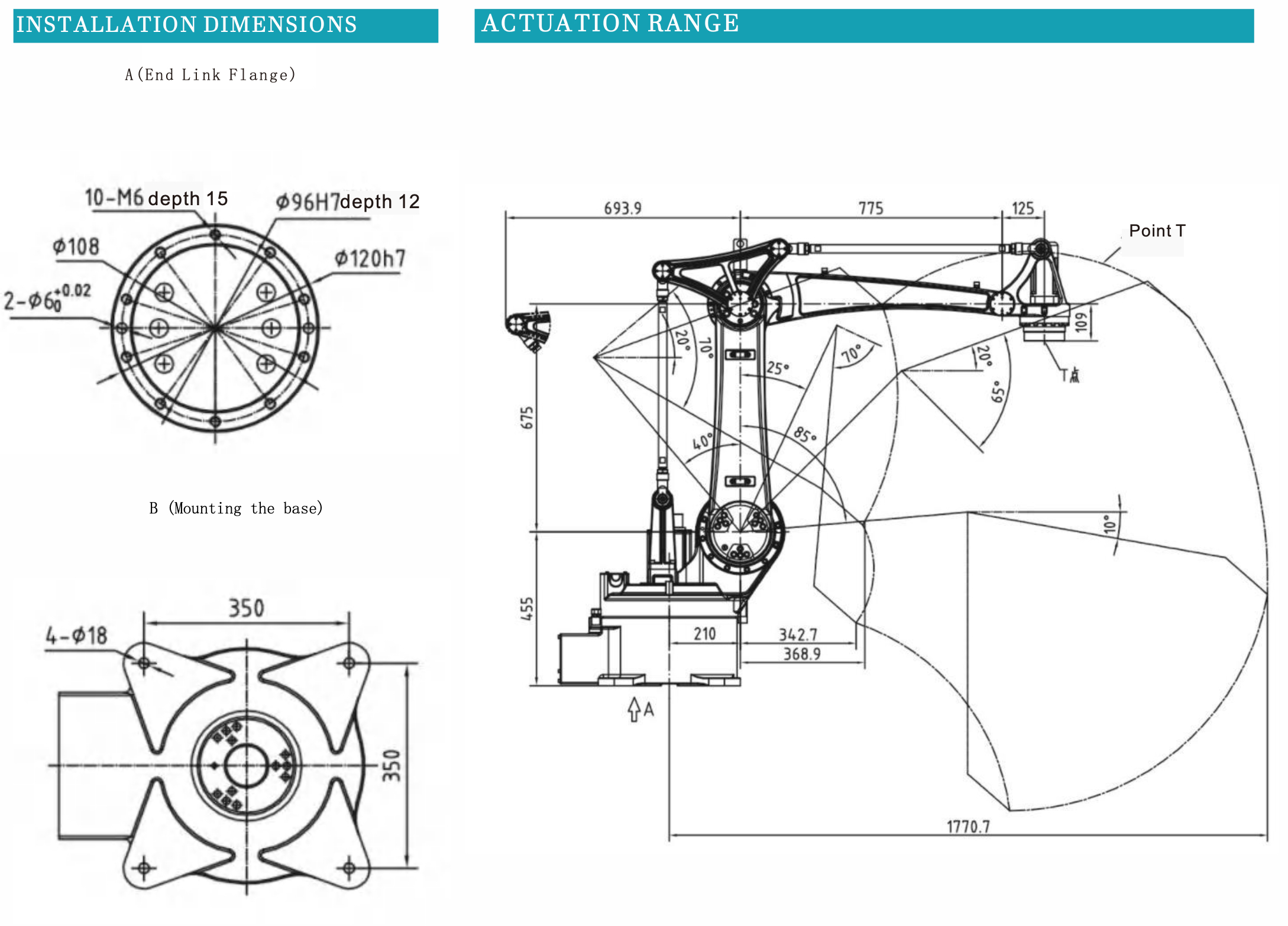

| Range of Motion | J1 | ±170° |
|---|---|---|
| J2 | -40° ~ +85° | |
| J3 | -90° ~ +20° | |
| J4 | ±360 |
| Maximum Speed | J1 | 150°/s |
|---|---|---|
| J2 | 149°/s | |
| J3 | 150°/s | |
| J4 | 297.5°/s |
| Protection Grade | Protection Grade | body IP53,wrist Ip54 |
|---|
| Other | Main Purpose | handling/ palletizing/ load and unload/ |
|---|
