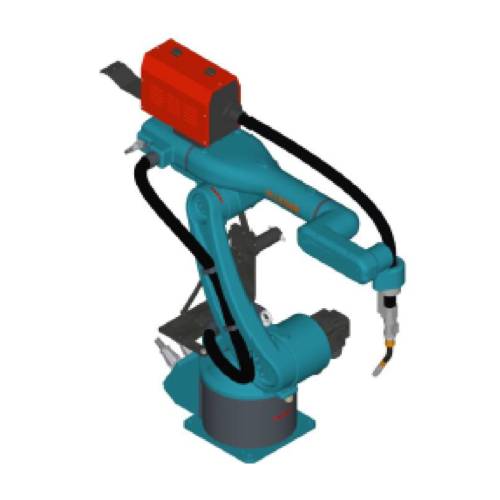

Welding Robots
Welding Robots are highly advanced automated systems designed to perform welding tasks with precision, efficiency, and consistency. These robots are equipped with sophisticated sensors, control systems, and welding technologies to deliver high-quality welds in a variety of industrial applications. By automating the welding process, they help improve productivity, enhance safety, and reduce costs.
Technical Parameters
| Basic Parameters | Degrees of Freedom | 6 |
|---|---|---|
| Specified Load | 6kg | |
| J3 Additional Load | 12kg | |
| Repeatability | ±0.5mm | |
| Body Mass | 164kg | |
| Installation Method | ground/side wall | |
| Battery Capacity | 2.5 KW | |
| Voltage | 380V | |
| Brake | J2, 3, 4, 5 with brake |

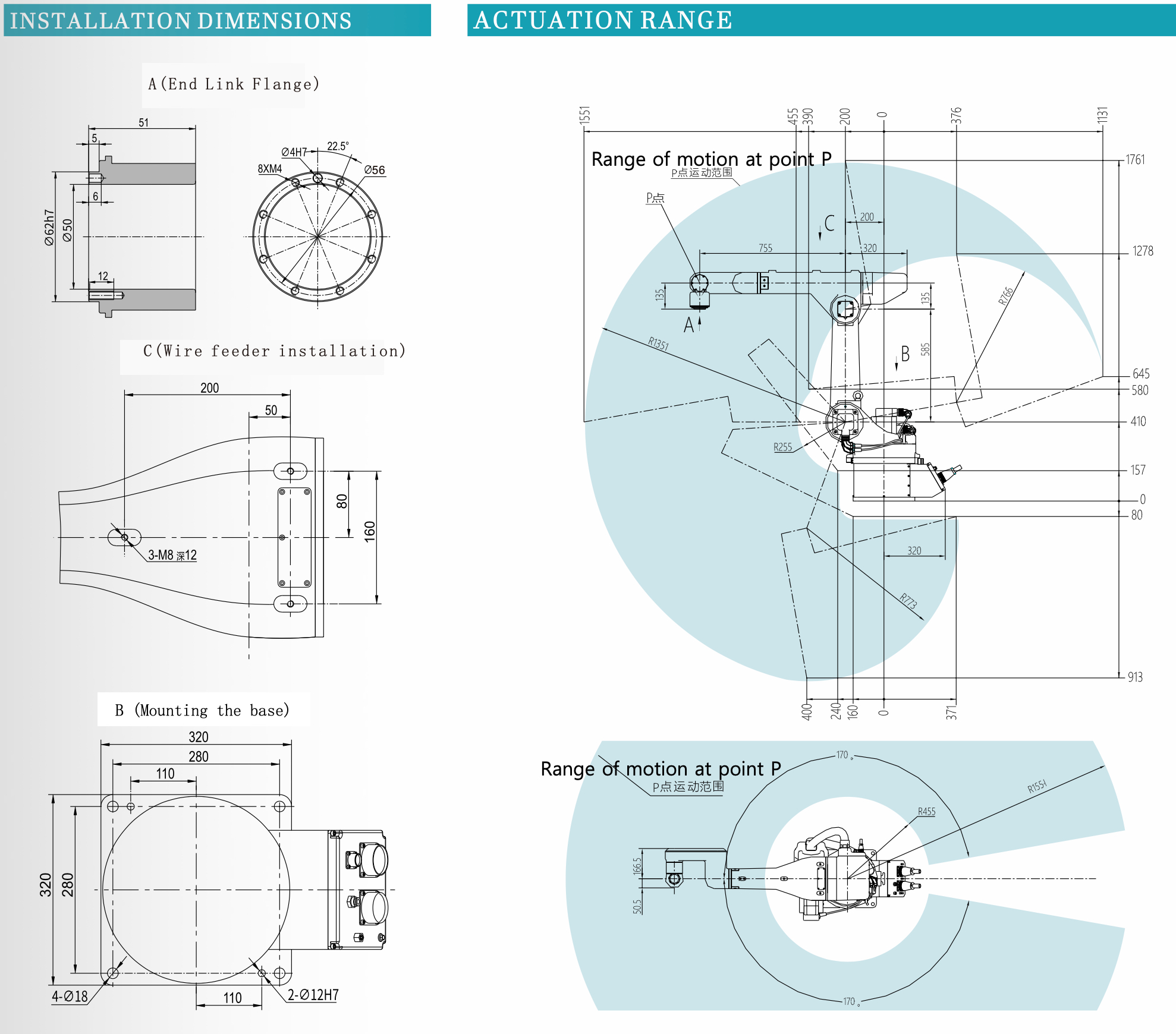

| Range of Motion | Maximum Reach at P | 1551mm |
|---|---|---|
| Minimum Reach at P | 455mm | |
| J1 | ±170° | |
| J2 | -160° ~ +80° | |
| J3 | -85° ~ +90° | |
| J4 | ±360° | |
| J5 | ±360° | |
| J6 | ±360° |
| Maximum Speed | J1 | 138°/s |
|---|---|---|
| J2 | 138°/s | |
| J3 | 223°/s | |
| J4 | 270°/s | |
| J5 | 337°/s | |
| J6 | 1070°/s | |
| Speed | 1.5 m/s |
| Allowable Moment | J4 | 15.0 N·m |
|---|---|---|
| J5 | 15.0 N·m | |
| J6 | 4.3 N·m |
| Other | End Flange | hollow |
|---|---|---|
| Suitable for welding gun | built-in | |
| Welding gun line length | 1.2 m | |
| Change to 5 Axis | yes | |
| Custom Gantry Mount | yes | |
| Isolation Transformer | yes | |
| Main Purpose | welding |
